REW series | ||||
Item | Spec | Overall size L*W mm | Cut out size (LxW)mm | Max.open(K°) |
1 | REW500*350 | 529*379 | 502*352 | 45° |
2 | REW500*450 | 529*479 | 502*452 | 45° |
3 | REW900*350 | 929*379 | 902*352 | 45° |
4 | REW900*450 | 929*479 | 902*452 | 45° |
5 | REW900*900 | 929*929 | 902*902 | 60° |
6 | REW1000*800 | 1029*829 | 1002*802 | 50° |
7 | REW1100*450 | 1129*479 | 1102*452 | 45° |
8 | REW1200*300 | 1229*329 | 1202*302 | 12° |
9 | REW1200*500 | 1229*529 | 1202*502 | 32° |
10 | REW1450*550 | 1479*579 | 1452*552 | 50° |

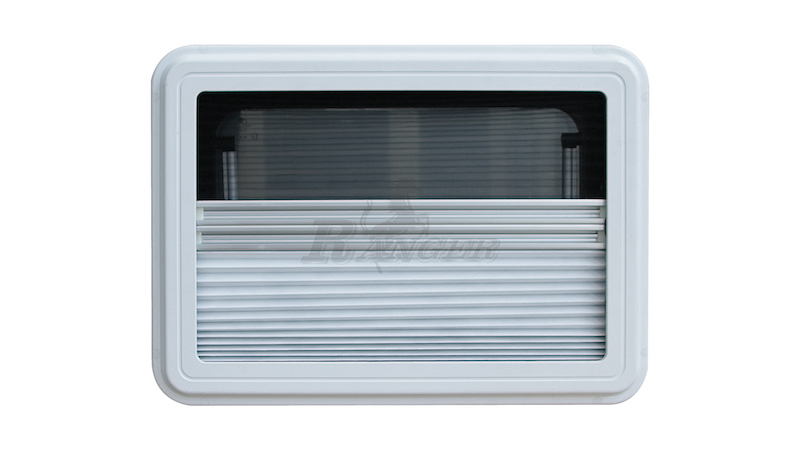

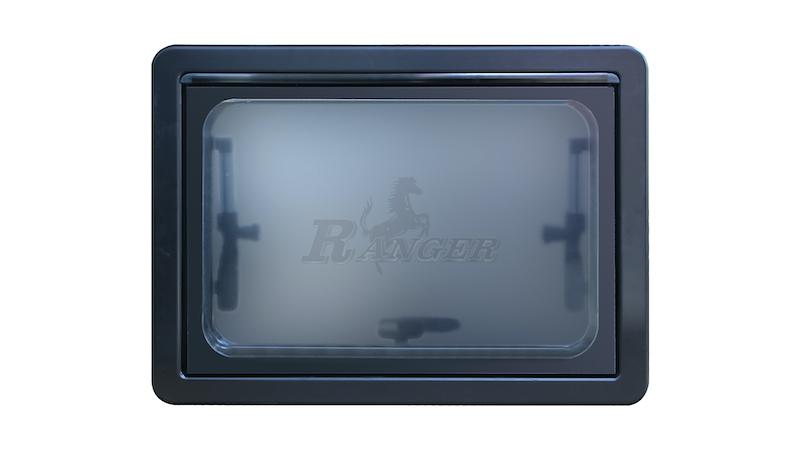

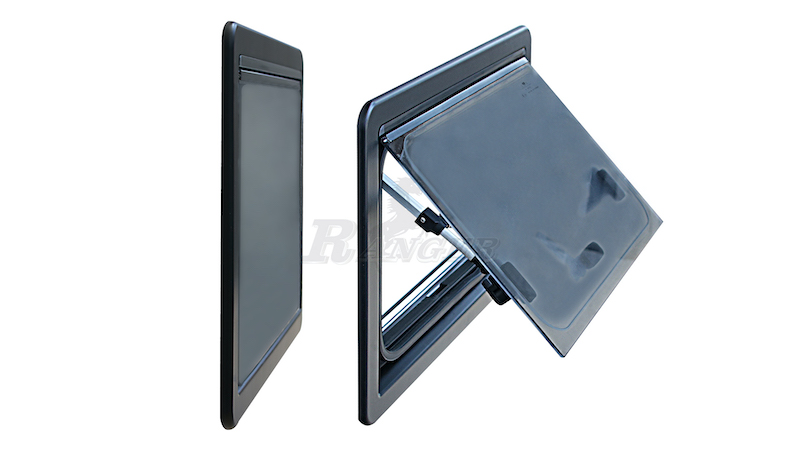

REW series panel window
1.The complete window system for motorhomes and caravans,Grey acrylic
double glazed pane with integrated roller blind and fly net,excellent insulation.
2.Simple and quick installation
3.ASA frame provides outstanding resistance to all weather conditions.
4.Panel double acrylic, matched with outer frame well, good waterproof.
5.Acrylic and blind parts can assemble separately,good aftersale accessories
