WINDOW
Specification:
*Double glazed acrylic RV window.
*ASA frame provides outstanding resistance to all weather conditions.

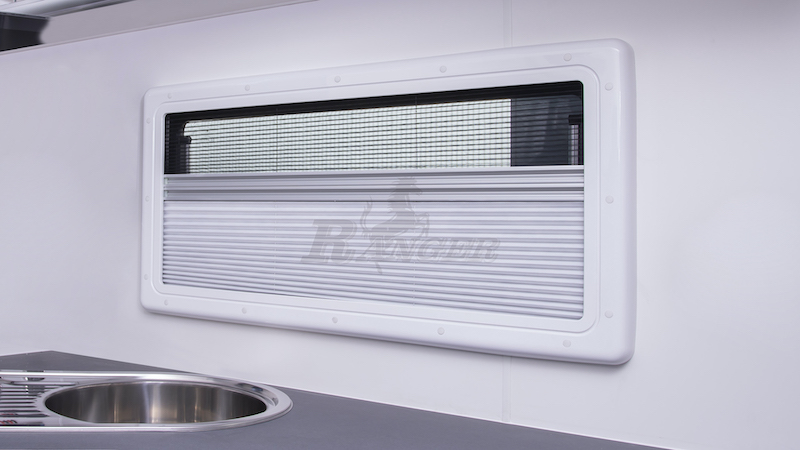

*with pleated folding block blind & fly screen.
*Easy and quick installation.

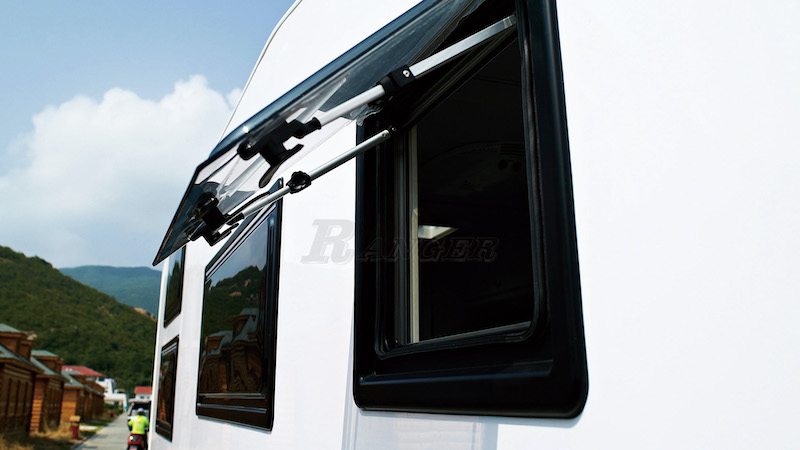

*Manual adjustment for variety of opening positions.
* Wall thickness 25-60mm.
Available sizes:
Product code | Overall size(mm,L+W ) | Cutout size(mm) | Weight(kg) | Max.open （Kº） |
RFW450500 | 479*529 | 452*502 | 4.5 | 78º |
RFW500300 | 529*329 | 502*302 | 3.2 | 32º |
RFW500350 | 529*379 | 502*352 | 4.2 | 60º |
RFW500450 | 529*479 | 502*452 | 4.2 | 70º |
RFW600600 | 629*629 | 602*602 | 5.5 | 80º |
RFW700800 | 729*829 | 702*802 | 8 | 85º |
RFW700400 | 729*429 | 702*402 | 5.5 | 70º |
RFW900350 | 929*379 | 902*352 | 6.5 | 60º |
RFW900450 | 929*479 | 902*452 | 7 | 70º |
RFW900550 | 929*579 | 902*552 | 8 | 70º |
RFW900900 | 929*929 | 902*902 | 12 | 78º |
RFW1000800 | 1029*829 | 1002*802 | 12 | 85º |
RFW1100450 | 1129*479 | 1102*452 | 8.5 | 70º |
RFW1200300 | 1229*329 | 1202*302 | 8.5 | 32º |
RFW1200500 | 1229*529 | 1202*502 | 9.5 | 78º |
RFW1450550 | 1479*579 | 1452*552 | 13 | 70º |
More size coming soon | ||||
